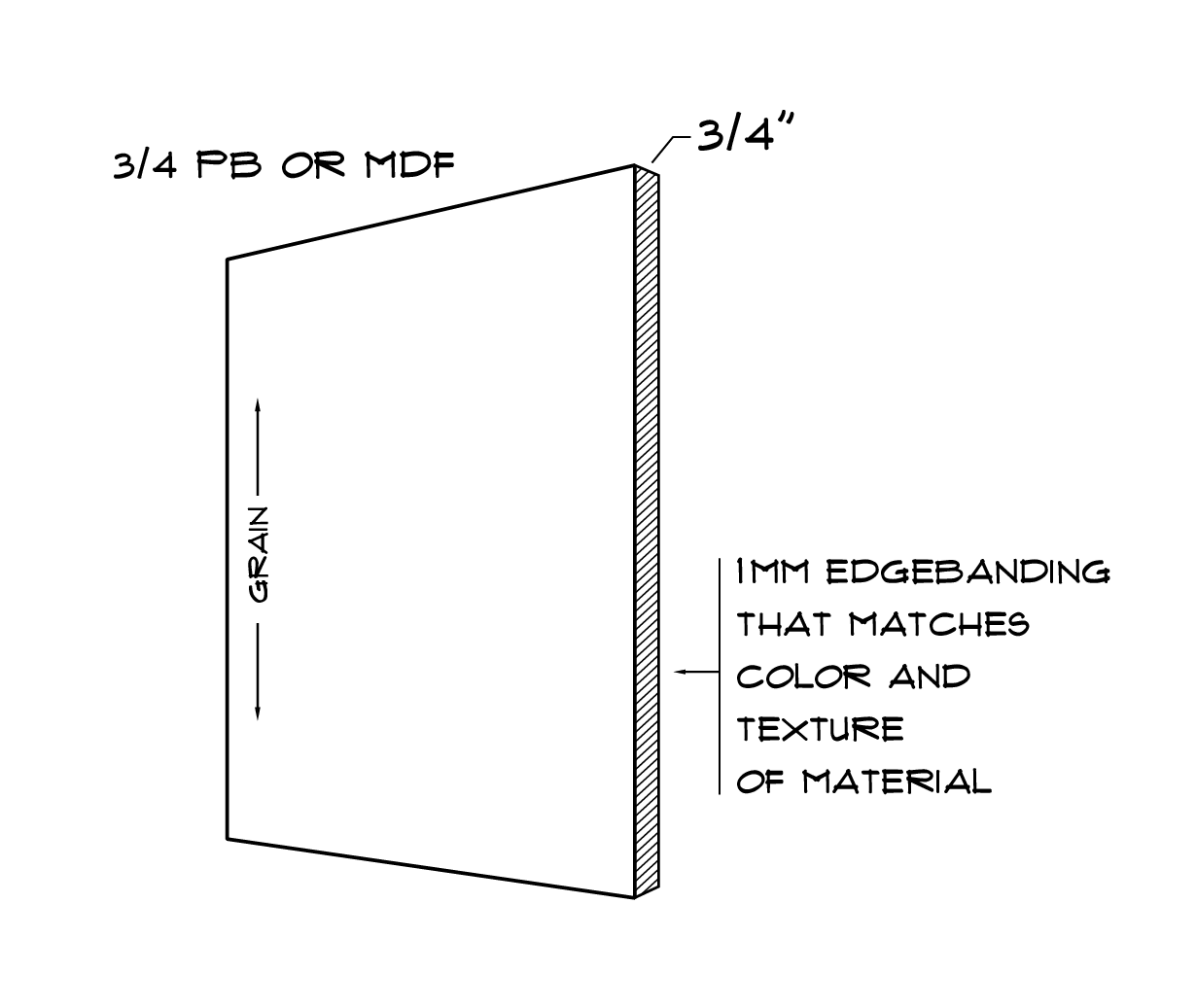

1 Piece Door
1 Piece Door is Vertical Grain

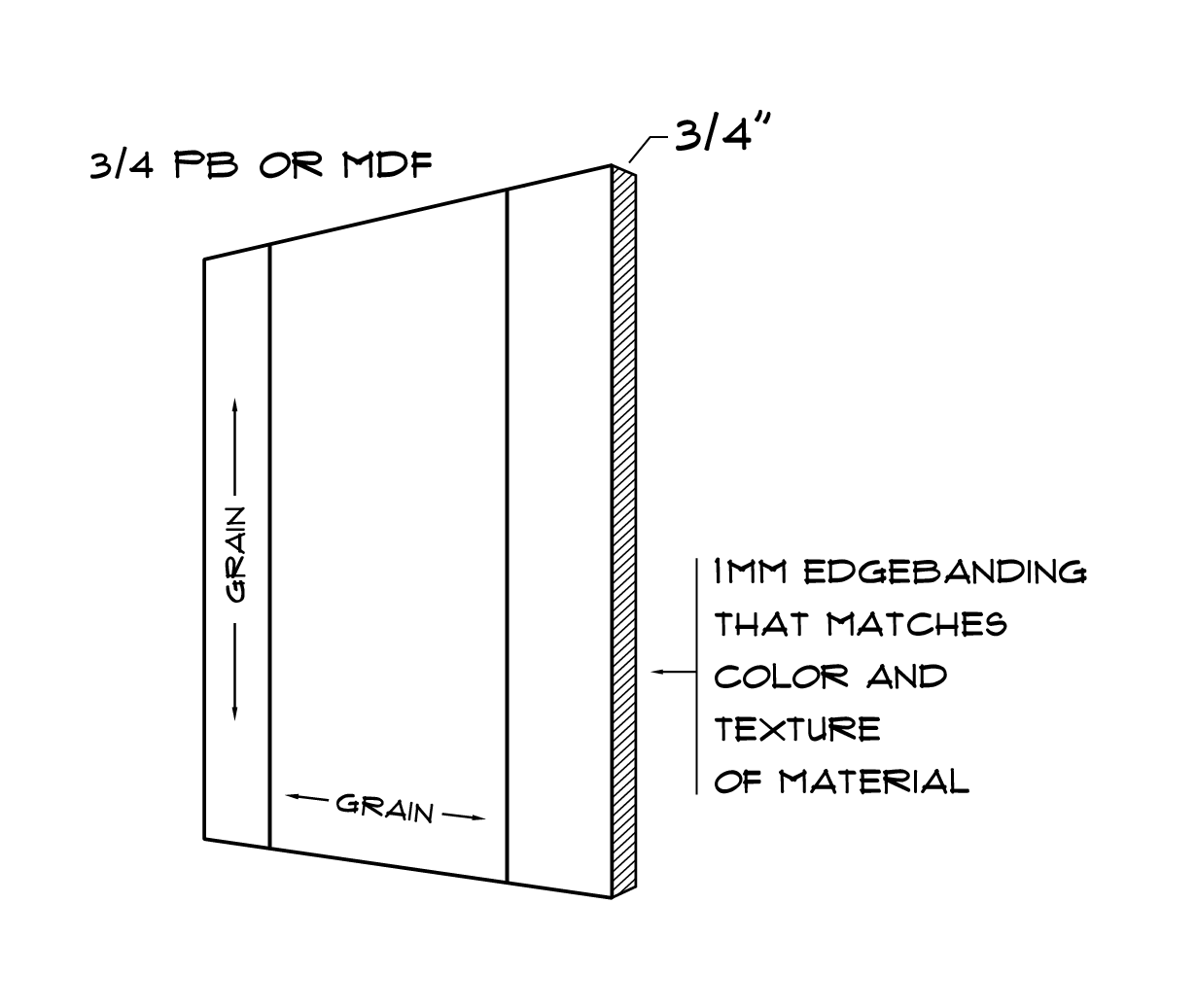

3 Piece Door
3 Piece Slab Door has Horizontal grain on both sides and Vertical grain on the center Panel

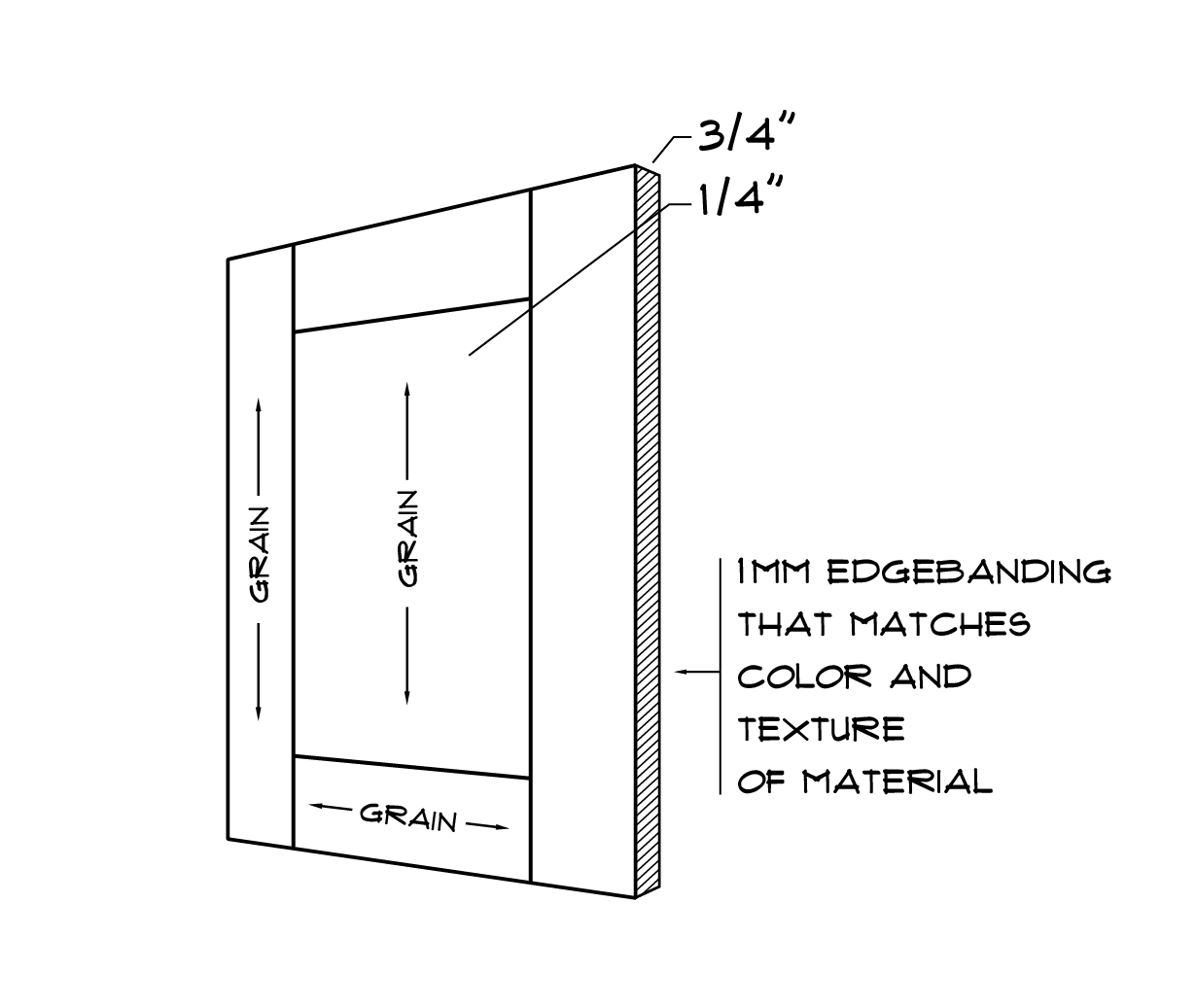

5 Piece Door
5 Piece Shaker Door has Vertical grain on inside Panel

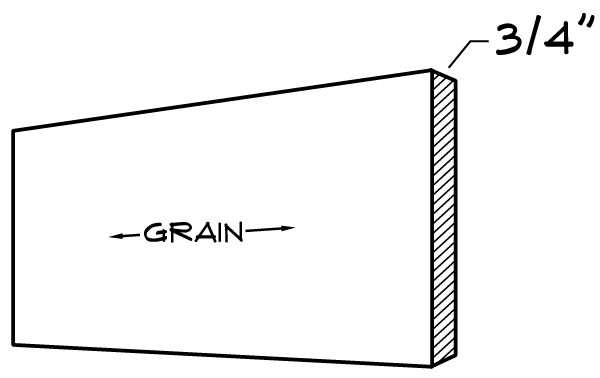

1 Piece Drawer Front
1 Piece Drawer is Horizontal Grain

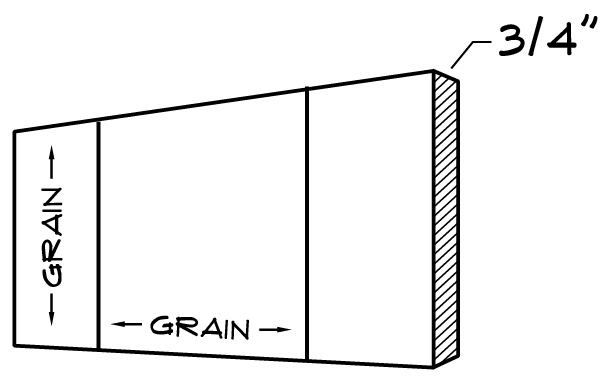

3 Piece Drawer Front
3 Piece Slab Drawer has Horizontal grain on both sides and Vertical grain on the center Panel

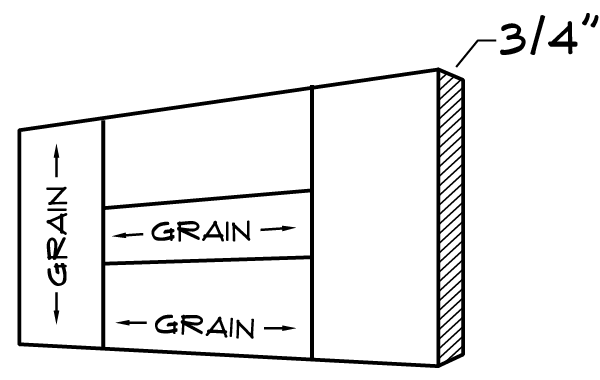

5 Piece Drawer Front
5 Piece Shaker Drawer has Horizontal Grain on inside Panel
5 Piece Tall Shaker
Extra Rail

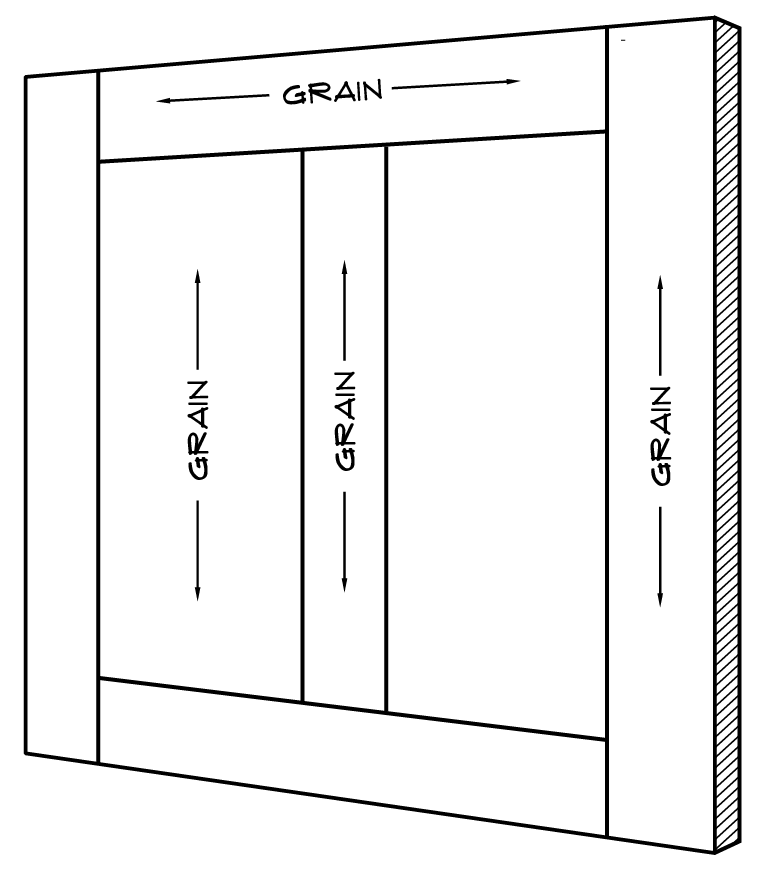

5 Piece Wide Shaker
Extra Stile

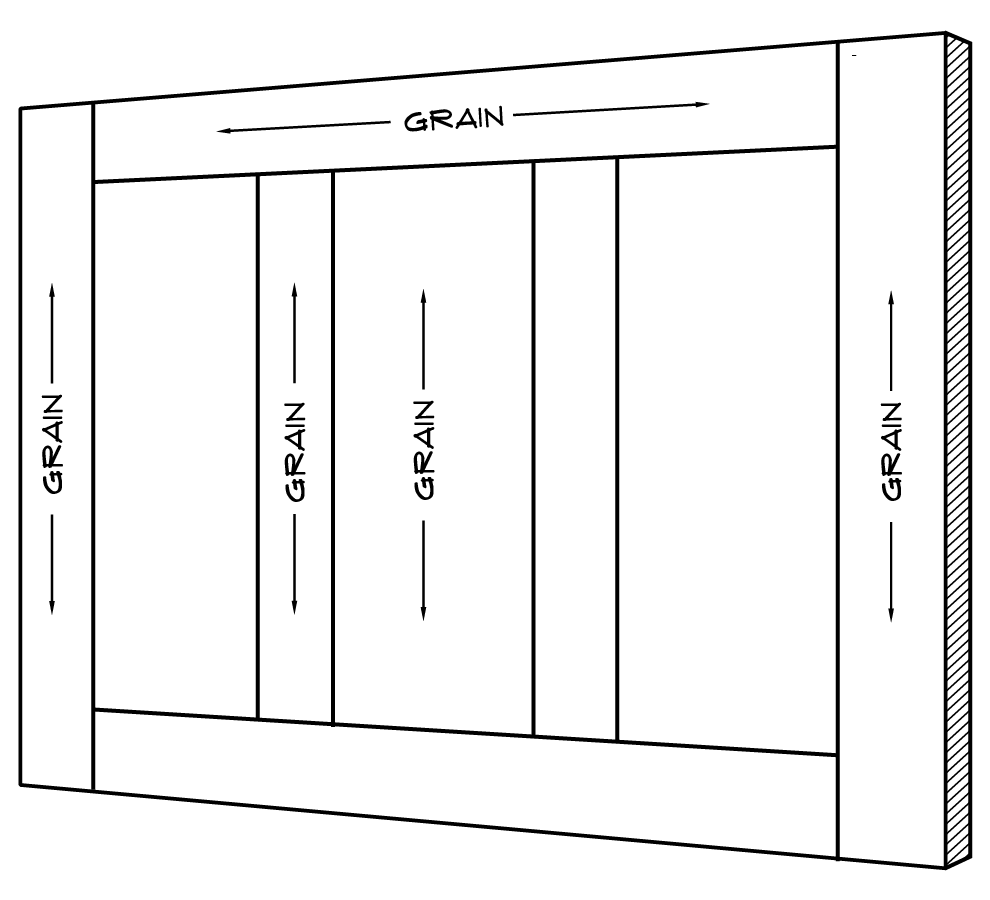

5 Piece Wider Shaker
2 Extra Stiles

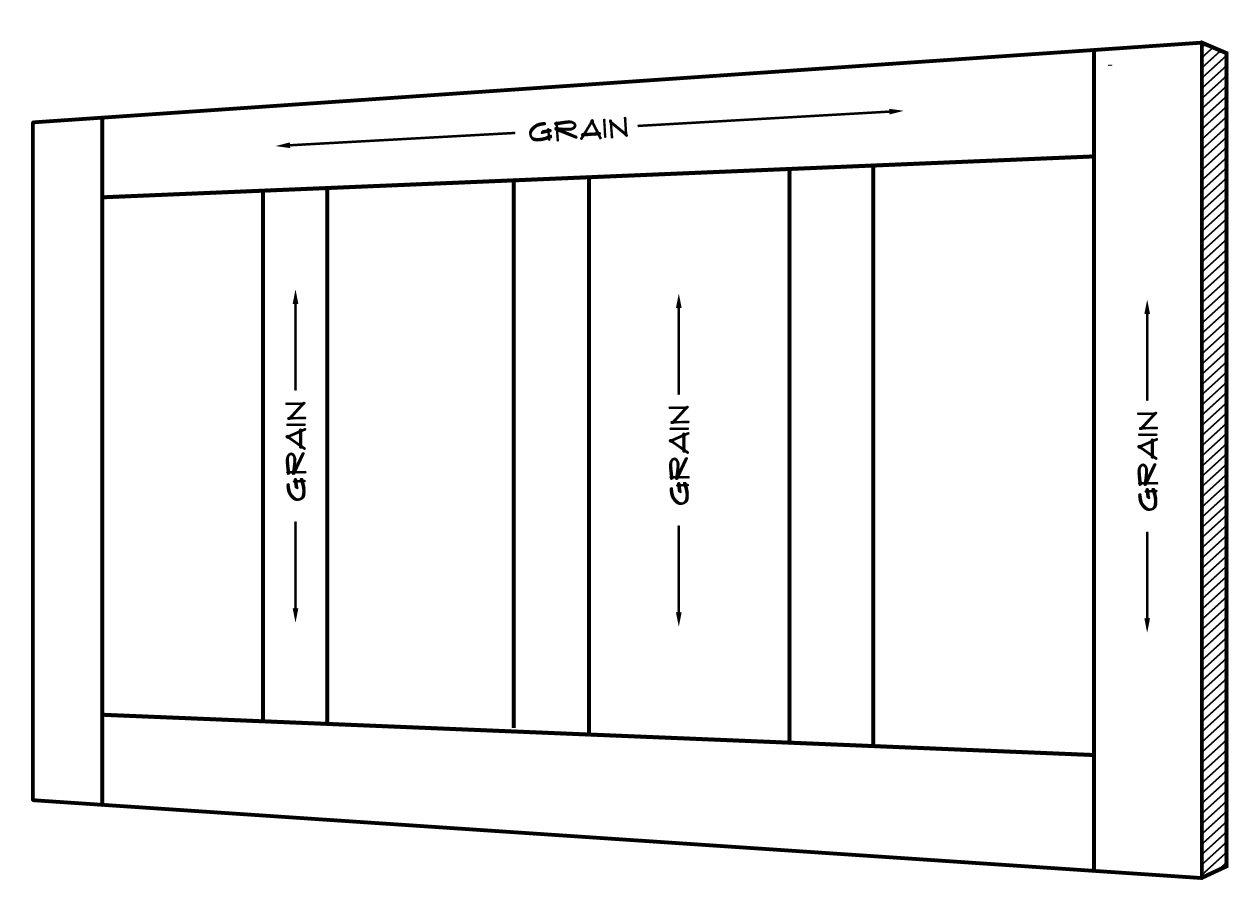

5 Piece Widest Shaker
3 Extra Stiles

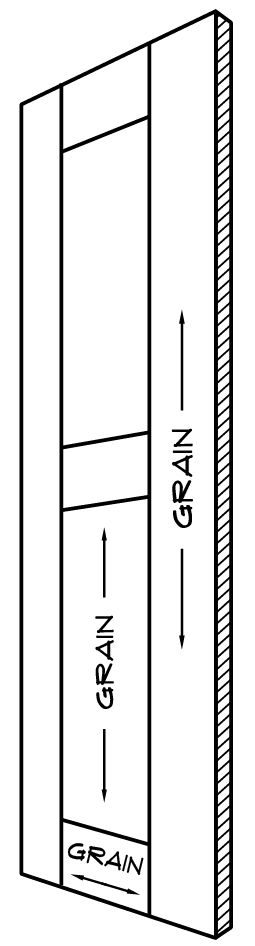

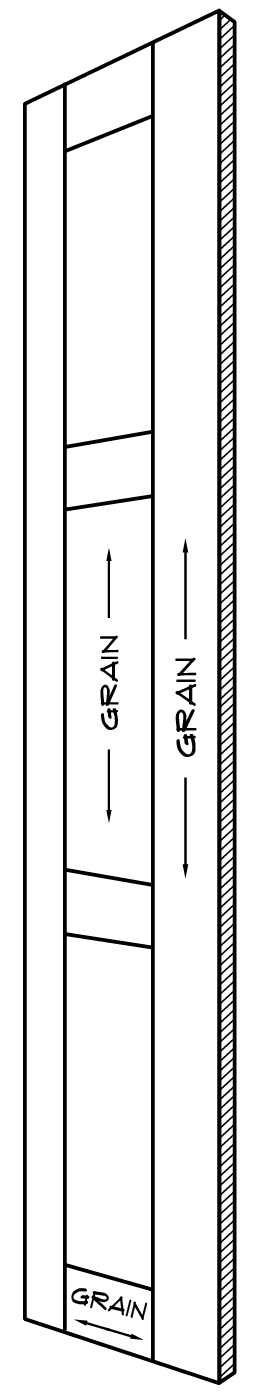

5 Piece Taller Shaker
2 Extra Rails
Product Specifications
Our TFL cabinet doors and drawer fronts are available in a variety of sizes and configurations to suit your specific needs. Below are the standard specifications for our door and drawer front options:
| Door Options | Minimum (Width x Height) |
Maximum (Width x Height) |
Notes |
|---|---|---|---|
| 1 Piece Slab Door | 6x3 inches |
48x96 inches |
1 Piece Door is Vertical Grain Edgebanded around all sides |
| 1 Piece Slab Drawer Front | 6x3 inches |
96x48 inches |
1 Piece Drawer is Horizontal Grain (if you need as Vertical Grain order it as a Door) |
| 1 Piece Filler Strips Vertical Grain | 6x3 inches |
48x96 inches |
Available in 3, 6, 9, 12 inch only. Edgebanded on the two long sides |
| 1 Piece Filler Strips Horizontal Grain | 6x3 inches |
96x48 inches |
Available in 3, 6, 9, 12 inch only. Edgebanded on the two long sides |
| 3 Piece Slab Door | 10x3 inches |
102x48 inches |
3 Piece Slab Door has Vertical grain on both sides and Horizontal grain on the center Panel |
| 3 Piece Slab Door | 10x3 inches |
102x48 inches |
3 Piece Slab Door has Vertical grain on both sides and Horizontal grain on the center Panel |
| 5 Piece Shaker Door | 10x7 inches |
24x42 inches |
5 Piece Shaker Door has Vertical Grain on inside Panel. Over 42 Inches high requires an extra Rail. Over 24 inches wide requires an extra Stile. |
| 5 Piece Shaker Drawer Front | 10x7 inches |
24x42 inches |
5 Piece Shaker Drawer has Horizontal Grain on inside Panel |
| 5 Piece Shaker Tall Door/Panel (Extra Rail) | 10x15 inches |
24x60 inches |
5 Piece Shaker Door has Vertical Grain on inside Panels. Over 60 Inches requires two extra Rails |
| 5 Piece Tall Shaker Door/Panel (2 Extra Rails) | 10x21 inches |
24x96 inches |
5 Piece Shaker Door has Vertical Grain on inside Panels. This is the tallest Door we can make. |
| 5 Piece Wide Shaker Door/Panel (Extra Stile) | 15x7 inches |
48x42 inches |
5 Piece Shaker Door has Vertical Grain on inside Panels. has Vertical Grain on inside Panels. We recommend at least 2 extra Stiles for anything over 32 Inches. |
| 5 Piece Wide Shaker Door/Panel (2 Extra Stiles) | 21x7 inches |
72x42 inches |
5 Piece Shaker Door has Vertical Grain on inside Panels. has Vertical Grain on inside Panels. We recommend at least 3 Extra Stiles for anything over 38 Inches. |
| 5 Piece Wide Shaker Door/Panel (3 Extra Stiles) | 27x7 inches |
96x42 inches |
5 Piece Shaker Door has Vertical Grain on inside Panels. has Vertical Grain on inside Panels. This is the widest door we can make. |
Custom Options
Beyond our standard offerings, we provide several customization options to meet your specific needs.
Edge Banding
Choose from various edge banding options to complement your door style and color selection.
Hardware Drilling
We offer precise hardware drilling services to accommodate your specific hardware requirements.
Special Sizes
Need something outside our standard dimensions? Contact us to discuss your custom size requirements.
